Base Trailer Specifications:
Additional Information and Pictures of this Base Model Trailer (without Options) may be found on our Website.
•Tandem 3,500 lbs. Leaf Spring Axle with Brakes
•White .024 Aluminum Exterior with Matching Screws
•2-5/16in Ball Coupler
•7-way Round plug
•Interior 12v Dome Light
•LED Strip Tail Lights
•24in ATP Stone Guard on Front
•Aluminum teardrop Fenders with LED Lights
•Galvalume Roof System
•Plastic Side Vents
•1in x 1in Steel Tube in Ceiling
•1in x 1in Steel Tube in Walls
•2in x 4in Steel Tube Mail Rails
•Ceiling Members 24in On Center
•Floor Members 16in On Center
•+3in Extra Height
•2,000 lbs. Tongue Jack
•Wall Members 16in On Center
•V-Nose with Vertical ATP Trim
•3/8in Plywood Walls
•3/4in Plywood Floor
•Medium Duty Ramp Door with Spring Assist and Bottom Flap
•32in RV Style Side Door with Flush Lock
•Approximate Interior Height – 6ft3in (75in)
•4x 15in Radial Tires
•4x Silver Powder Coated Modular Style Steel Rim
Requested Options (the below requested options replace any of the standard options listed above!):
Upgrade Roof On Centers to 12in from 24in
1x 30in x 30 Sliding Screen and Window
2x 15in x 30 Sliding Screen and Window
Extended Tongue – +6in (Approximately 54in)
1x Backup Lights
12in Extra Height (Please allow for about a 1in Tolerance)
15,000 BTU A/C with Heat Strips (Requires Luan Ceiling Liner, 50 AMP Package) (Occupies Roof Vent)
Wire and Brace Roof Vent for A/C

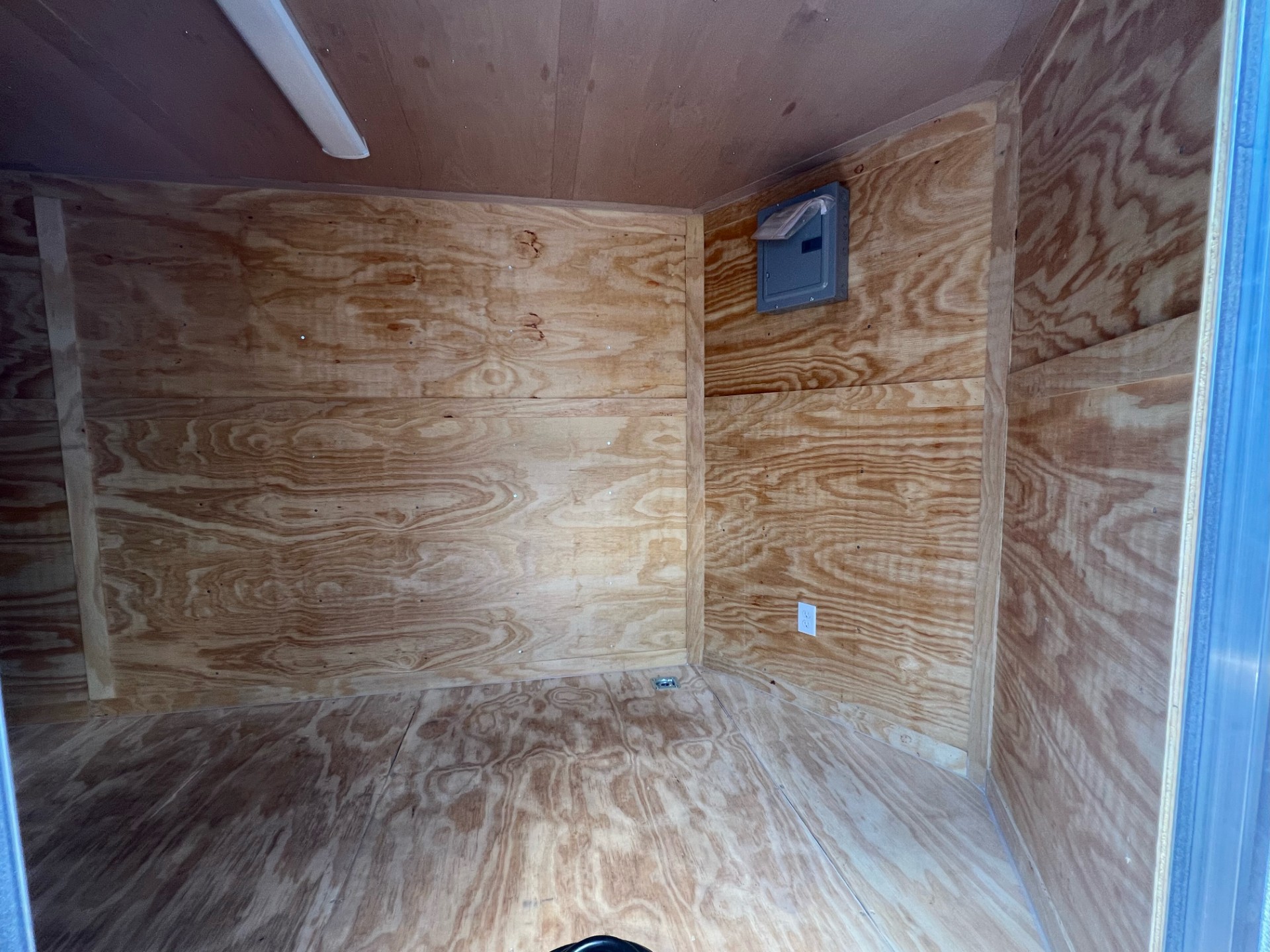

50 Amp Electrical Package – 50 Amp Panel Box, 2x110V Recepts, 2x4ft LED Lights (trailers less than 6ft6in tall will have lights in Corners), and 25ft Lifeline (Wiring will be Exposed without Ceiling Liner)
50 Amp Motor Base Plug
Ceiling Liner – Luan
Insulated Ceiling
Insulated Walls
Charcoal .080 Polycore Exterior
Wrap – 12in Aluminum Tread Plate (ATP) Trim on Sides and Rear
